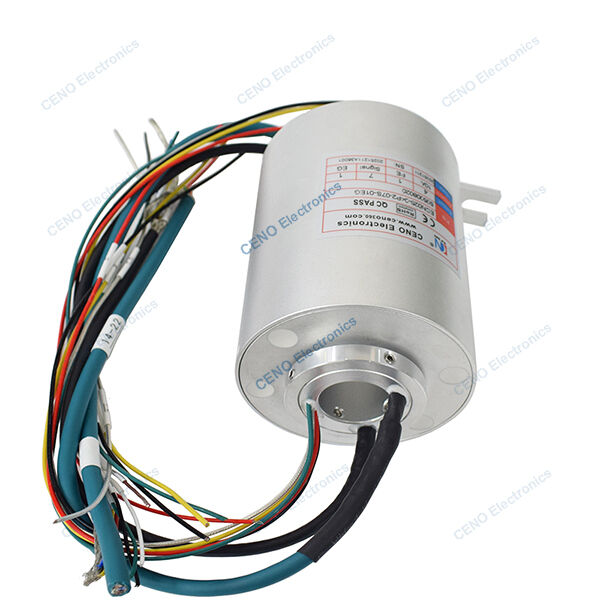

Ethernet Slip Ring combine Electric Power & Encoder Signal for Industry Robot
ECN025-04P2-07S-01EG is CENO Ethernet slip ring combined circuits electric power and through hole design with inner bore 25mm optional. Ethernet slip rings are specialized electrical slip rings that integrate Ethernet signal transmission capabilities. Their core function is to achieve uninterrupted, low-latency, and low-error-rate Ethernet data transmission between rotating and stationary components while also being compatible with power and general control signal transmission. More information please contact us.
Features
u Through hole 3mm-980mm optional
u Circuits 1 - 300 circuits are option
u Stable transmitting, no string code, can be integrate various signal /data
u Install easy & Free maintenance
Applications
u Automatic machine
u Turntable testing machine
u Packing equipment
u Filling machinery
u Medical equipment
Optional
u Circuit, Voltage, Current
u Signals and data
u Contact / Housing Materials
u Protection grade
Working speed & temperature
Specification
| ECN025-04P2-07S-01EG Specification | |
| Current & Circuits | 4 * 10A; 1 * PE; 7 * Encoder; 1 * 1000M Ethernet |
| Rating Voltage | 0 ~ 380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø25.4mm |
| Outer diameter | Ø86mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
| Installation | Flange installation |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
