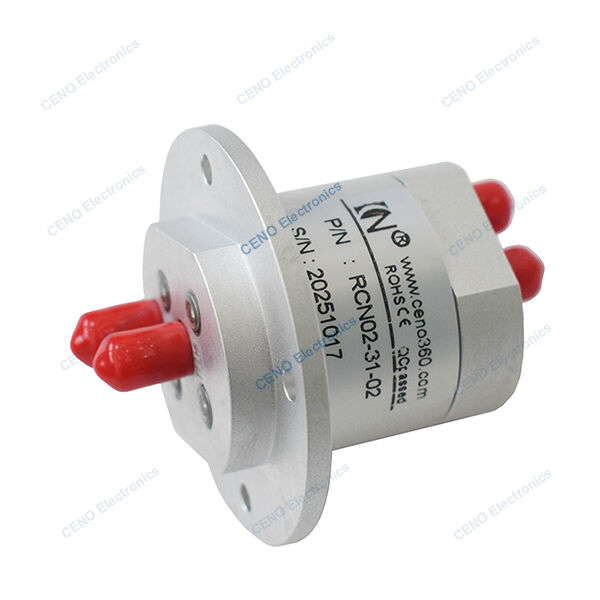

2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
RCN02-31-02 is CENO 2 channels coaxial Radio Frequency Rotary Joint with frequency range DC-2GHz and 29-31GHz. RF rotary joints are used in continuous rotation applications to transmit high-frequency and high-speed signals between stationary and rotating components. RF rotary joints feature a compact structure, stable performance, excellent shielding, strong anti-interference capabilities, and ease of integration for different application. For more information please contact us.
Specification
| RCN02-31-02 Specification | ||
| Channels | CH1 (TX) | CH2 (TX) |
| Interface type | SMA 2.92-K(50Ω) | SMA (50Ω) |
| Frequency range | 29-31GHz | DC-2GHz |
| Peak Power,max | 50W | 30W |
| Average Power,max | 25W | 10W |
| VSWR,max | 1.6 | 1.5 |
| VSWR-wow,max | 0.15 | 0.2 |
| Insertion Loss,max | 0.8dB | 0.6dB |
| Insertion Loss- wow,max | 0.1dB | 0.1dB |
| DC Load Capacity | 50V@1A | |
| Insolation,min | 50dB | |
| Rotating Speed,max | 60rpm | |
| Life Time,min | 5 million | |
| Starting Torque | ≤0.3Nm | |
| Temperature | -40℃ ~ + 70℃(W); -55℃ ~ + 85℃(S) | |
| Humidity | 95% | |
| IP Protection grade | IP41 | |
| Surface treatment | Conductive oxidation | |
| Body Material | Aluminium alloy | |
| Altitude | Up to 3Km | |
| Shock / Vibration | Per RTCA DO-160G (TBD), standard for airborne systems | |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
