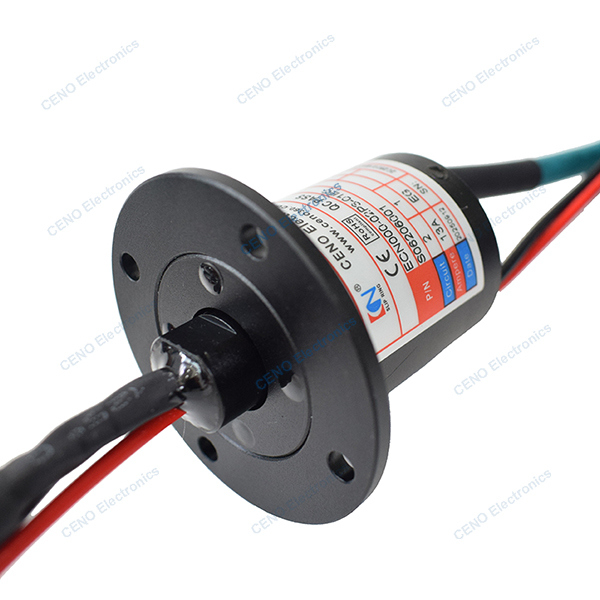

1000M Gigabit Ethernet Signal Slip Ring with Electric Power for Industry
ECN000-02P3-01EG is CENO Ethernet signal slip ring with flange structure for easier installation. Ethernet slip rings adopt local area network transmission technology based on fiber optic communication. They achieve high-speed, stable and reliable data transmission by combine optical fibers and cables, and Ethernet slip ring enable seamless connections between wire and forjs, ensuring the stability and reliability of data transmission. For special application please contact us.
Features
Applications
Optional
Specification
| ECN000-02P3-01EG Specification | |
| Current & Circuits | 2 circuits * 13A; 1 circuits *1000M Ethernet |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~10rpm |
| Outer diameter | Ø35mm |
| Contact material | Precious Metal / Gold to gold |
| Housing material | Aluminium Alloy |
| Rotation way | Flange installation |
| Lead wire length | As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
