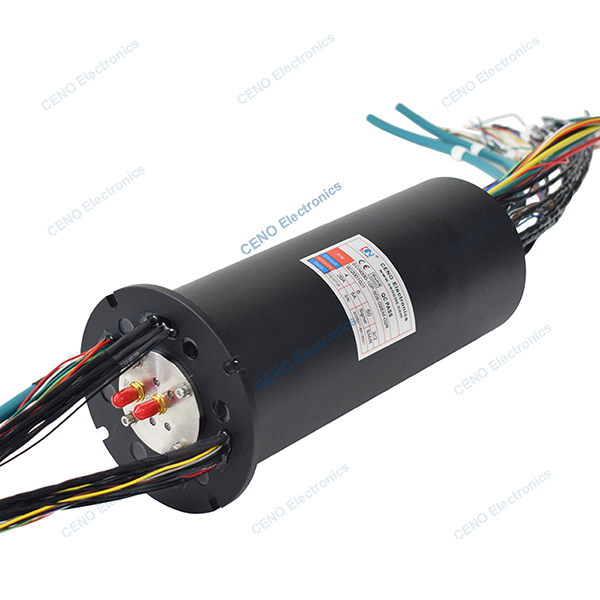

Low temperature integrate electric power Ethernet & RF Rotary union slip ring
ECN000-10P-50S-02EM-02R is CENO integrate slip ring combine circuits electric power, Ethernet signal and 2 channels radio frequency. RF slip rings are specifically designed and categorized by transmission frequency into low-frequency RF slip rings and high-frequency/microwave slip rings. Low-frequency RF slip rings are relatively simple to manufacture and are relatively inexpensive. High-frequency/microwave slip rings are difficult to design and manufacture, requiring extremely high standards for materials and structure, and are therefore expensive. For more information please contact us.
Specification
|
ECN000-10P-50S-02EM-02R |
Specification | |
| Current & Circuits | 4*20A; 6 * 5A; 50 * Signal; 2 * Ethernet signal | |
| Rating Voltage | 0 ~ 220 VAC/VDC | |
| Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz | |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC | |
| Contact resistance wave | ≤ 30mΩ | |
| Working temperature | -40°C~+60°C | |
| Working humidity | 60%RH | |
| IP protection grade | IP51 | |
| Operating speed | 0~100rpm | |
| Outer diameter | Ø90mm | |
| Contact material | Precious metal | |
| Housing material | Aluminium Alloy | |
| Lead wire length | As customized | |
| Rotation way | Flange installation | |
| Radio frequency | Parameters | |
| Channel1 | Channel 2 | |
| Connector type | SMA-f (50Ω) | SMA-f (50Ω) |
| Style | Style I | Style I |
| Frequency range | DC to 8GHz | DC to 8GHz |
| WSR (max) | 1.4 | 1.5 |
| WSR floating (max) | 0.15 | 0.2 |
| Insert loss | 0.7dB | 1.1dB |
| Insert loss (max) | 0.1dB | 0.1dB |
| Average power | 10W@1Ghz | 10W@1Ghz |
| Isolation | 70dB | 70dB |
